M5 moldable connector with solder cup pin for wire soldering. This connector is often used for over-mold cable and junction box with IP68 waterproof when mated.
View More
EN / 中文

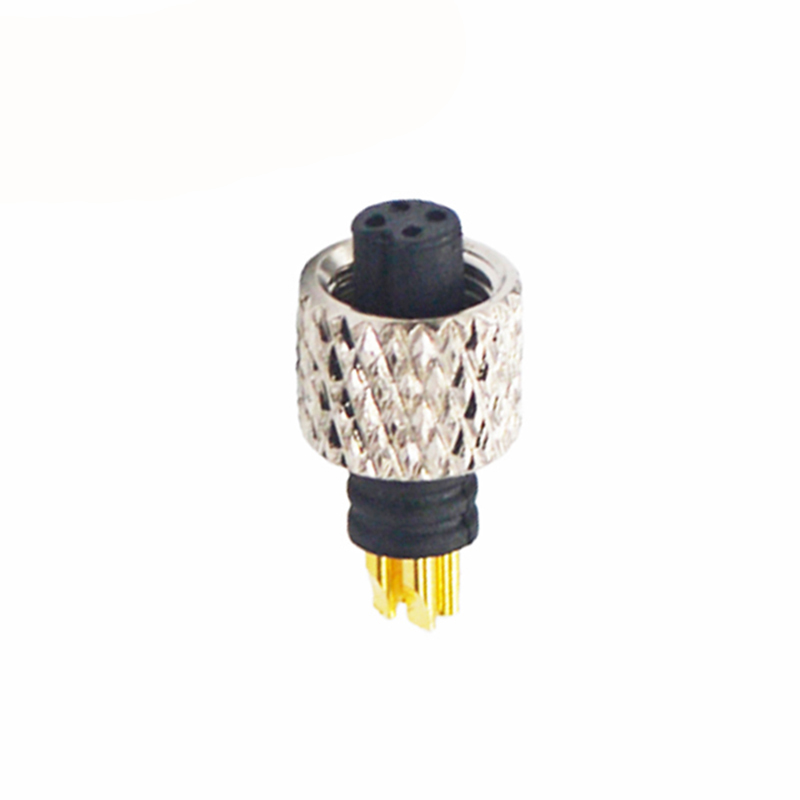

M5 3pins A code female moldable connector,brass with nickel plated screw
M5 moldable connector with solder cup pin for wire soldering. This connector is often used for over-mold cable and junction box with IP68 waterproof when mated.
Inquire Online
Download
General information
| Part no | 5C002 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
General features
| Standards | IEC 61076-2-105 |
| Termination | Solder |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Wire gauge(mm²) | 0.14mm² |
| Wire gauge(AWG) | 26AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reac |
Electrical parameters
| 3Pin | 60V |
| Rated voltage | 1A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
Material
| Connector body | TPU |
| Pin |
Phosphorus copper with gold plated
|
| Screw | Brass with nickel plated |
