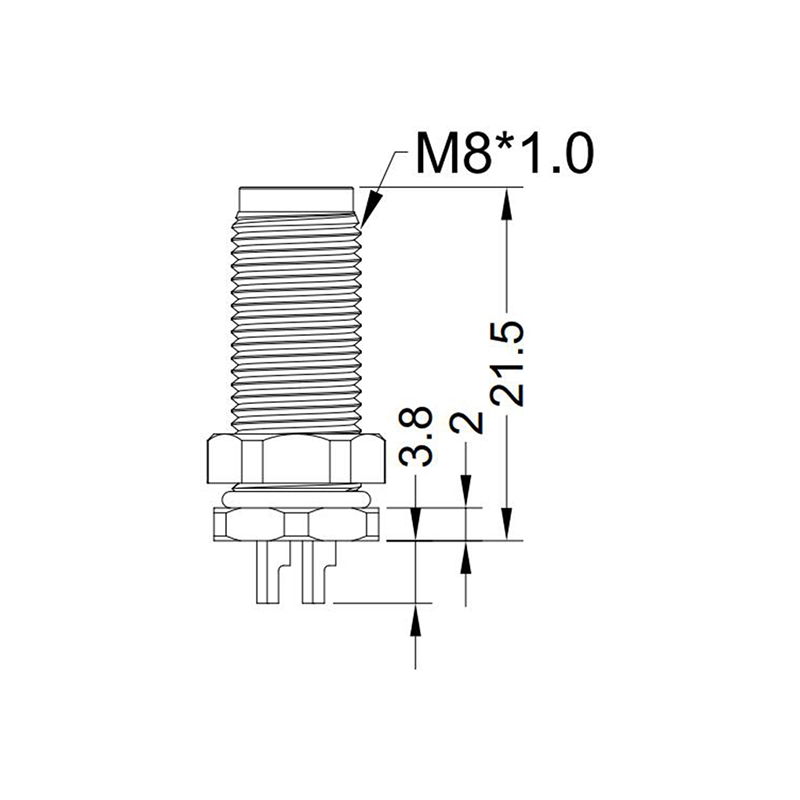

.jpg "M8 6pins A code male straight front panel mount connector,unshielded,solder,brass with nickel plated shell")

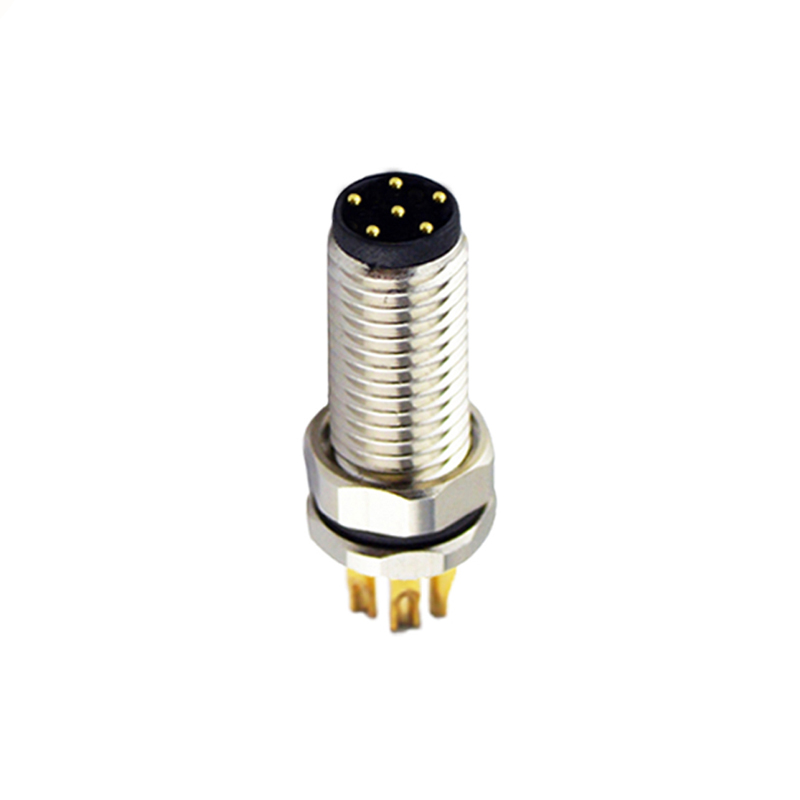

.jpg "M8 6pins A code male straight front panel mount connector,unshielded,solder,brass with nickel plated shell")
.jpg "M8 6pins A code male straight front panel mount connector,unshielded,solder,brass with nickel plated shell")
| Part no | 8H013 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
| Standards | IEC 61076-2-104 |
| Termination | Solder wires |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reac |

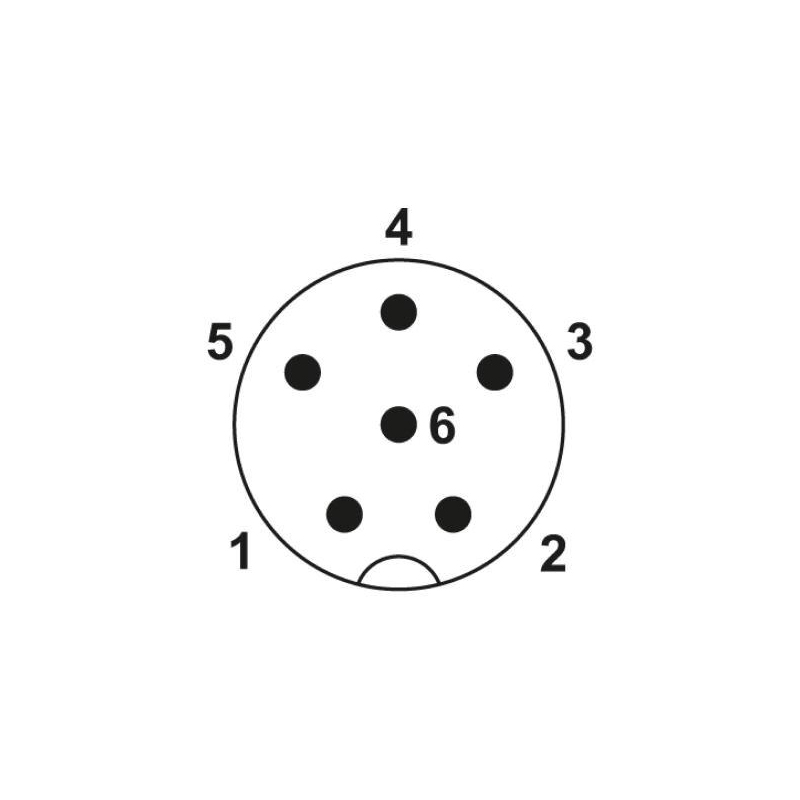

| 6Pin | 30V |
| Rated voltage | 1A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
| Connector body | TPU |
| Pin | Brass with gold plated |
| Nut and shell | Brass with nickel plated |
| Gasket | Fluorine ring |
| Black glue | Epoxy resin |
| RoHS & REACH Declaration | 8H013 |
