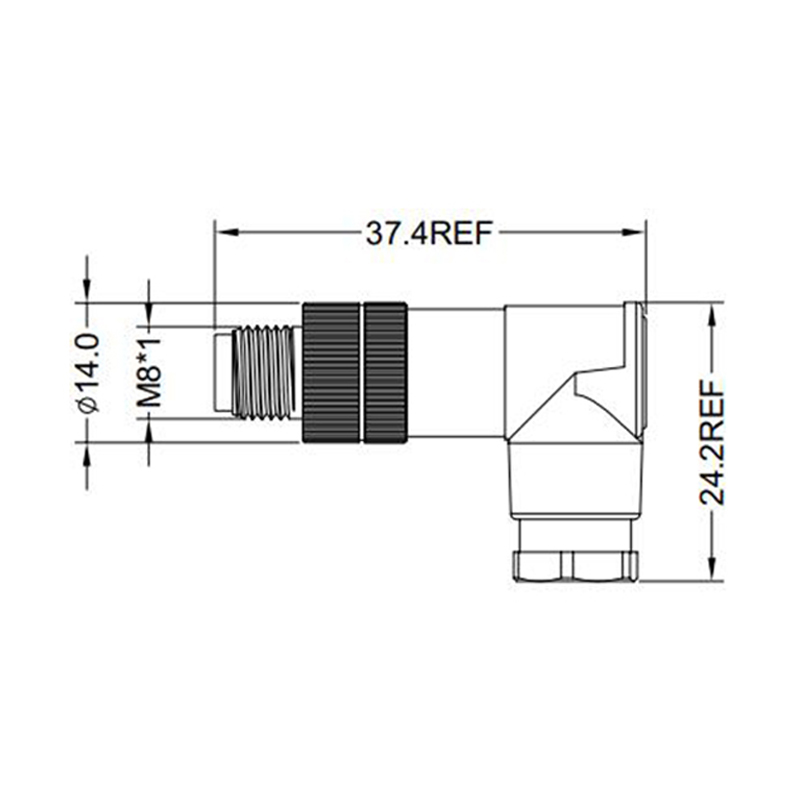

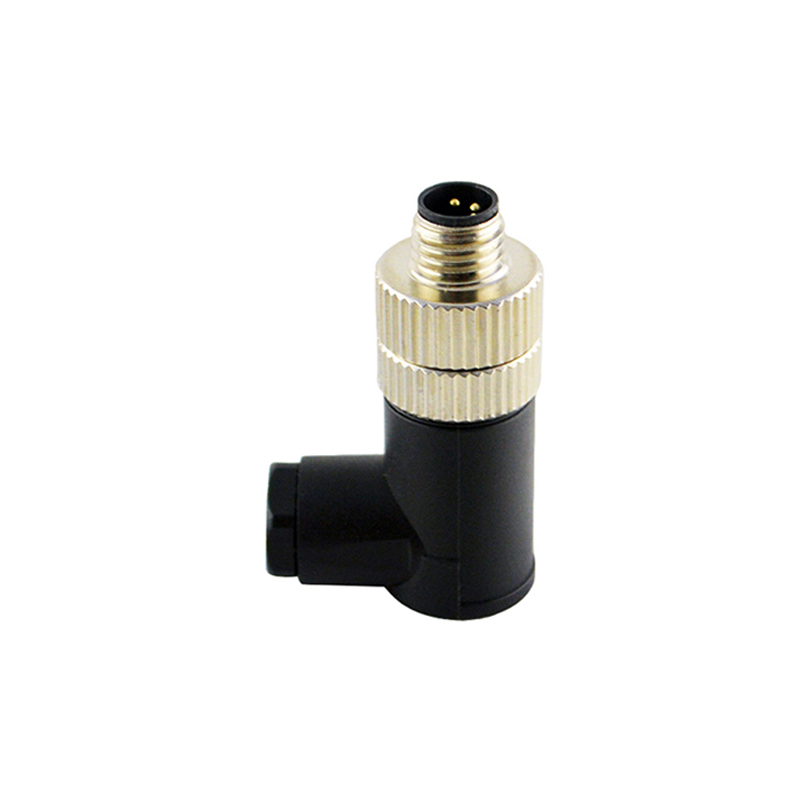

.jpg "M8 4pins A code male right angle plastic assembly connector,unshielded,suitable cable outer diameter 3.5mm-5.0mm")
.jpg "M8 4pins A code male right angle plastic assembly connector,unshielded,suitable cable outer diameter 3.5mm-5.0mm")
.jpg "M8 4pins A code male right angle plastic assembly connector,unshielded,suitable cable outer diameter 3.5mm-5.0mm")
.jpg "M8 4pins A code male right angle plastic assembly connector,unshielded,suitable cable outer diameter 3.5mm-5.0mm")
| Part no | 8ZU07 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
| Standards | IEC 61076-2-104 |
| Termination | Screw clamp |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Wire gauge(mm²) | 0.14mm²-0.34mm² |
| Wire gauge(AWG) | 26AWG-22AWG |
| Suitable cable outer diameter | 3.5mm-5.0mm |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reac |
| 4Pin | 30V |
| Rated voltage | 3A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
| Connector body | TPU |
| Pin | Brass with gold plated |
| Screw | Brass with nickel plated |
| Gasket | Fluorine ring |
| RoHS & REACH Declaration | 8ZU07 |
M8 connectors for assembly provide the best connection technology for every application where standard cable assemblies with over-molded connectors are not an option. Indus-connector has plastic version both straight type and right angle typ
View More
M8 connectors for assembly provide the best connection technology for every application where standard cable assemblies with over-molded connectors are not an option. Indus-connector has plastic version both straight type and right angle typ
View More
M8 connectors for assembly provide the best connection technology for every application where standard cable assemblies with over-molded connectors are not an option. Indus-connector has plastic version both straight type and right angle typ
View More
M8 connectors for assembly provide the best connection technology for every application where standard cable assemblies with over-molded connectors are not an option. Indus-connector has plastic version both straight type and right angle typ
View More
