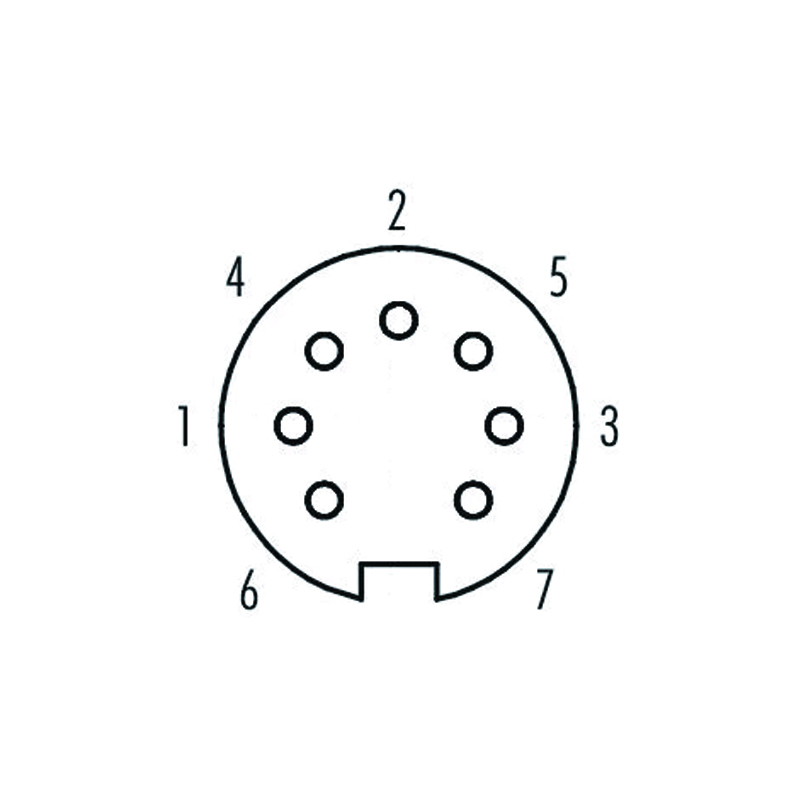

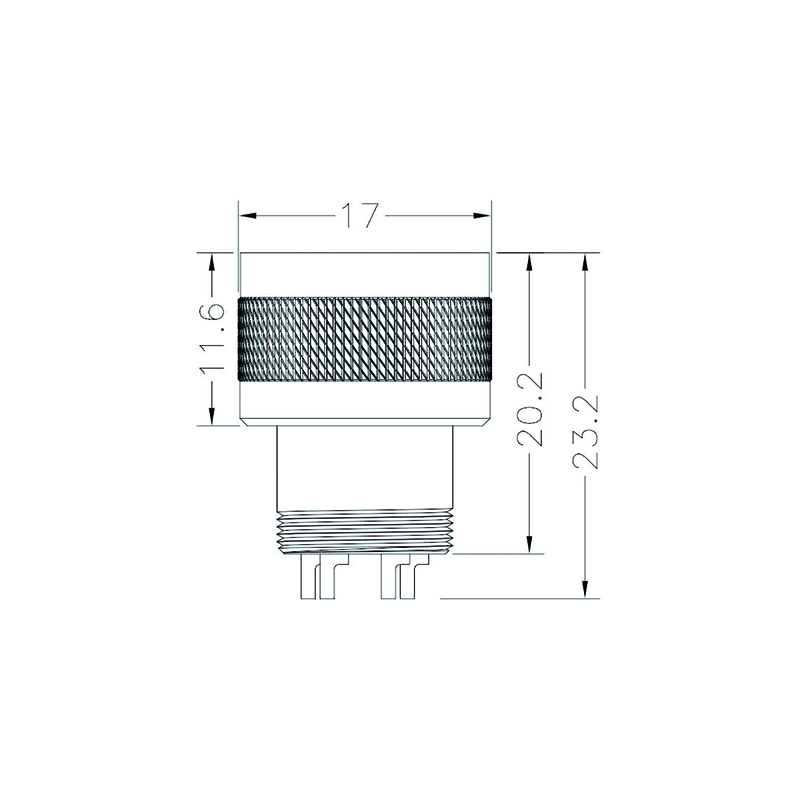

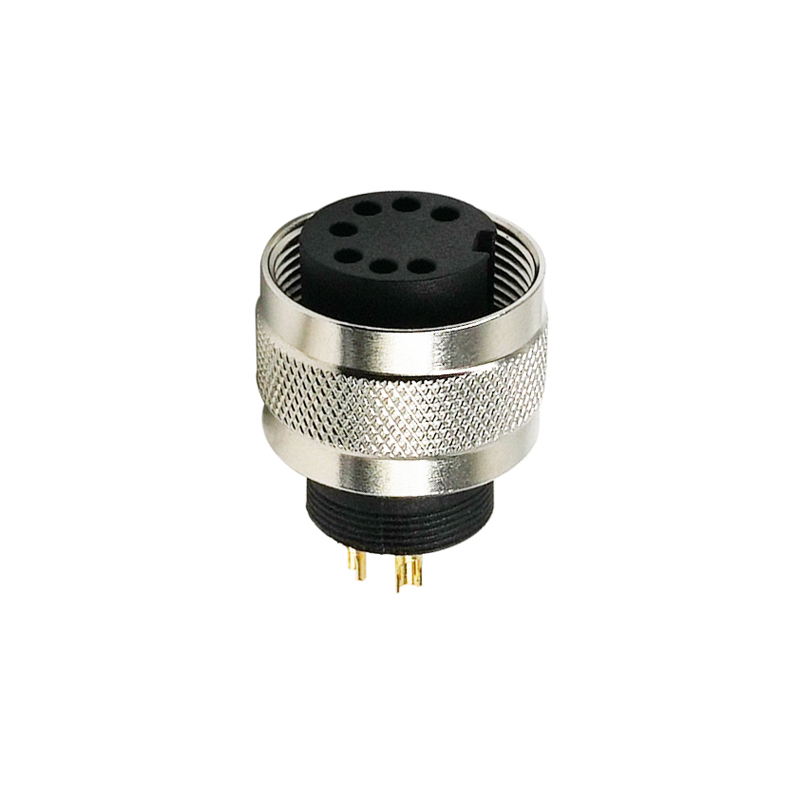

M16 7pins B code female moldable connector,unshielded,brass with nickel plated screw

Inquire Online
Download

General information

Part no  16C032
Brand

Indus-c

MOQ

100

Place of origin     Shenzhen city, China
Delivery time

3 weeks


General features

Standards DIN EN 61076-2-106
Termination Solder
Connector locking system Screw
Degree of protection IP67
Wire gauge(mm²) 0.14mm²-0.75mm²
Wire gauge(AWG) 26AWG-18AWG
Mechanical operation >100 mating cycles
Ambient temperature(operation) -25°C~+85°C
Customs tariff number  8538900000
Environmental compliance   RoHS, Reach

Electrical parameters

7Pin 60V
Rated voltage 5.0A
Contact resistance 1010 Ω
Insulation resistance ≥100MΩ

Material

Connector body TPU
Pin Phosphorus copper with gold plated
Screw Brass with nickel plated

Download

NEED MORE INFORMATIONS?

Contact us

mating connectors

Copyright © Indus-c@ Co., Ltd. All Rights Reserved. Sitemap
  • M16 7pins B code female moldable connector,unshielded,brass with nickel plated screw
  • M16 7pins B code female moldable connector,unshielded,brass with nickel plated screw
  • M16 7pins B code female moldable connector,unshielded,brass with nickel plated screw
  • M16 7pins B code female moldable connector,unshielded,brass with nickel plated screw
  • M16 7pins B code female moldable connector,unshielded,brass with nickel plated screw
  • M16 7pins B code female moldable connector,unshielded,brass with nickel plated screw

M16,7针,B型母头成型式连接器,不带屏蔽,黄铜镀镍螺丝

M16成型式连接器的焊杯式端子用于焊接线。这种连接器经常用于分线盒和模具成型电缆。公母配插可达IP68防水。
询价
下载

常规信息

料号  16C032
品牌

Indus-c

最小订单量

100

原产地     中国,深圳市
交货期

3周


产品特点

标准 DIN EN 61076-2-106
焊接方式 焊接
防护等级 IP67
线规(平方数) 0.14mm²-0.34mm²
线号(平方数) 26AWG-18AWG
插拔次数 >100次
操作温度 -25°C~+85°C
环境符合标准 RoHs, Reach

参数

额定电压 60V
额定电流  5.0A
接触电阻 ≤5mΩ
绝缘电阻 ≥100MΩ

原料

胶芯 TPU
端子 磷铜镀金
螺丝 黄铜镀镍
