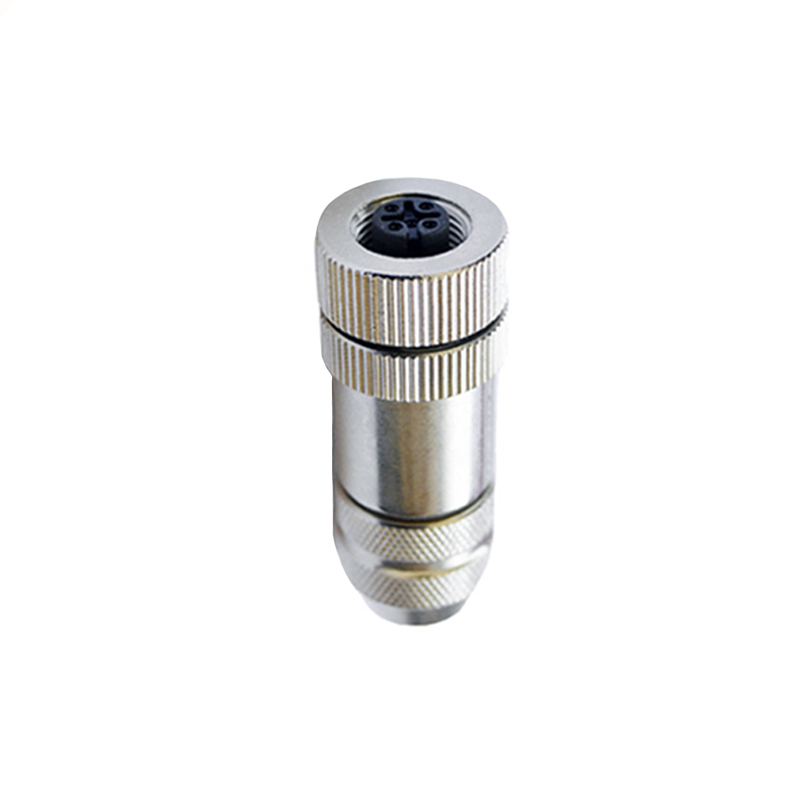

M12 4pins A code female straight metal assembly connector PG7 thread,shielded,brass with nickel plated housing,suitable cable diameter 4.0mm-6.0mm

M12 connectors for assembly provide the best connection technology for every application where standard cable assemblies with over-molded connectors are not an option. INDUS-CONNECTOR offers PG7 hole which is suitable for cable diameter 4.0mm-6.0mm and PG9 hole which is suitable for cable diameter 6.0mm-8.0mm.
Inquire Online
Download

General information

Part no
12ZS34-PG7
Brand

Indus-c

MOQ

100

Place of origin     Shenzhen city, China
Delivery time

3 weeks


General features

Standards IEC 61076-2-101
Termination Screw clamp
Degree of protection IP67
Wire gauge 0.14mm²-0.75mm²
Wire gauge 26AWG-18AWG

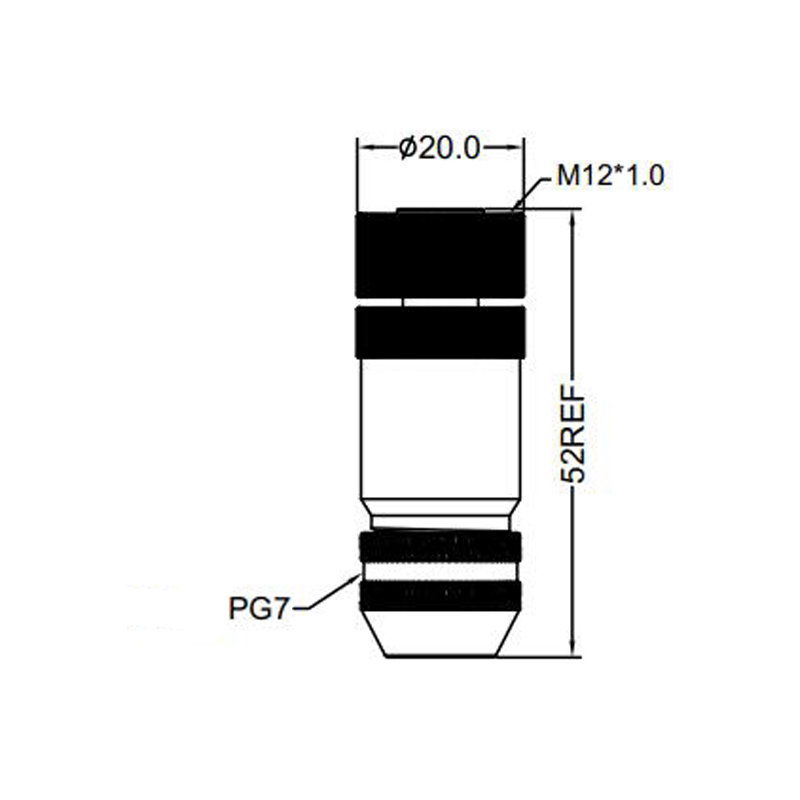

PG7 hole suitable cable outer diameter 4.0mm-6.0mm
Mechanical operation >100 mating cycles
Ambient temperature(operation) -25°C~+85°C
Customs tariff number  8538900000
Environmental compliance   RoHS, Reac

Electrical parameters

4Pin 250V
Rated voltage 4A
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ

Material

Connector body TPU
Pin Phosphorus copper with gold plated
Screw Brass with nickel plated

Download

RoHS & REACH Declaration 12ZS34-PG7
