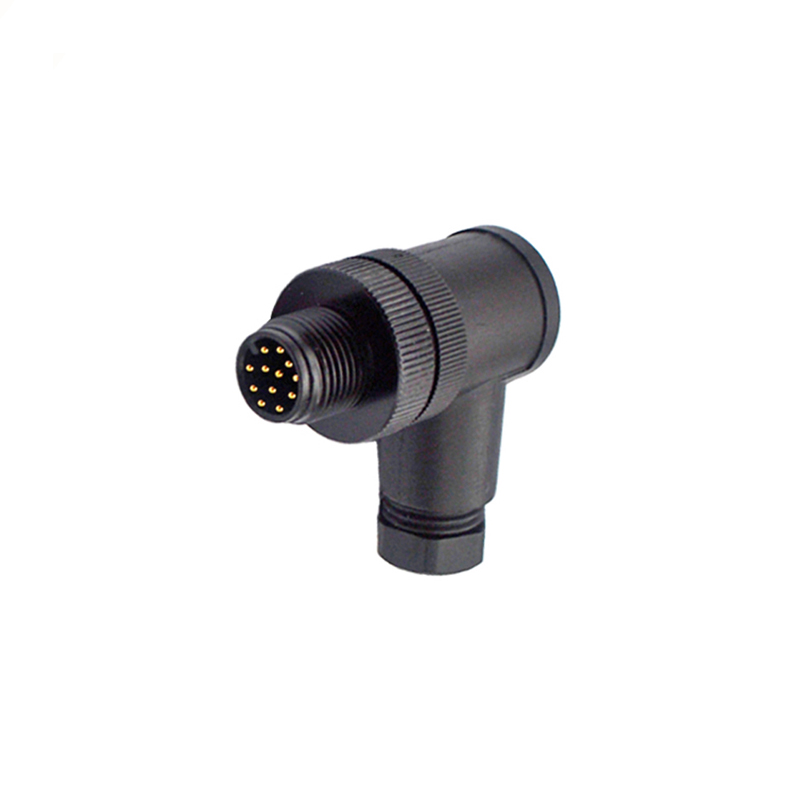

.jpg "M12 12pins A code male right angle plastic assembly connector PG7 thread, unshielded,suitable cable outer diameter 4.0mm-6.0mm")
.jpg "M12 12pins A code male right angle plastic assembly connector PG7 thread, unshielded,suitable cable outer diameter 4.0mm-6.0mm")
.jpg "M12 12pins A code male right angle plastic assembly connector PG7 thread, unshielded,suitable cable outer diameter 4.0mm-6.0mm")
| Part no |
12ZU71-PG7
|
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
| Standards | IEC 61076-2-101 |
| Termination | Screw clamp |
| Degree of protection | IP67 |
| Wire gauge | 0.14mm²-0.75mm² |
| Wire gauge | 26AWG-18AWG |
| PG7 hole suitable cable outer diameter | 4.0mm-6.0mm |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reac |
| 12Pin | 30V |
| Rated voltage | 1.5A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
| Connector body | TPU |
| Pin | Brass with gold plated |
| Screw | Brass with nickel plated |
| RoHS & REACH Declaration | 12ZU71-PG7 |
M12 connectors for assembly provide the best connection technology for every application where standard cable assemblies with over-molded connectors are not an option. INDUS-CONNECTOR offers PG7 hole which is suitable for cable diameter 4.0m
