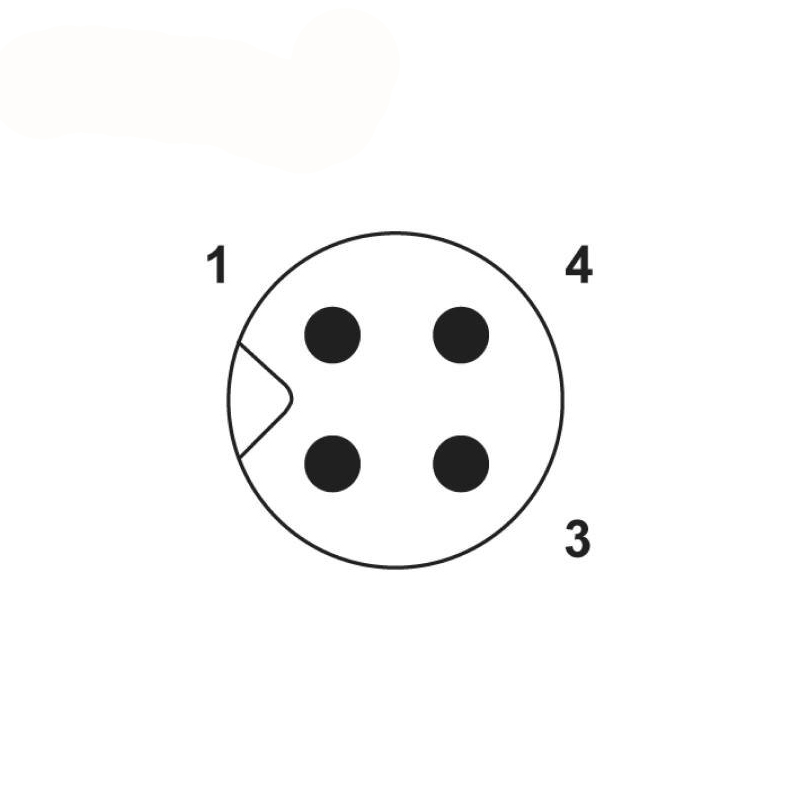

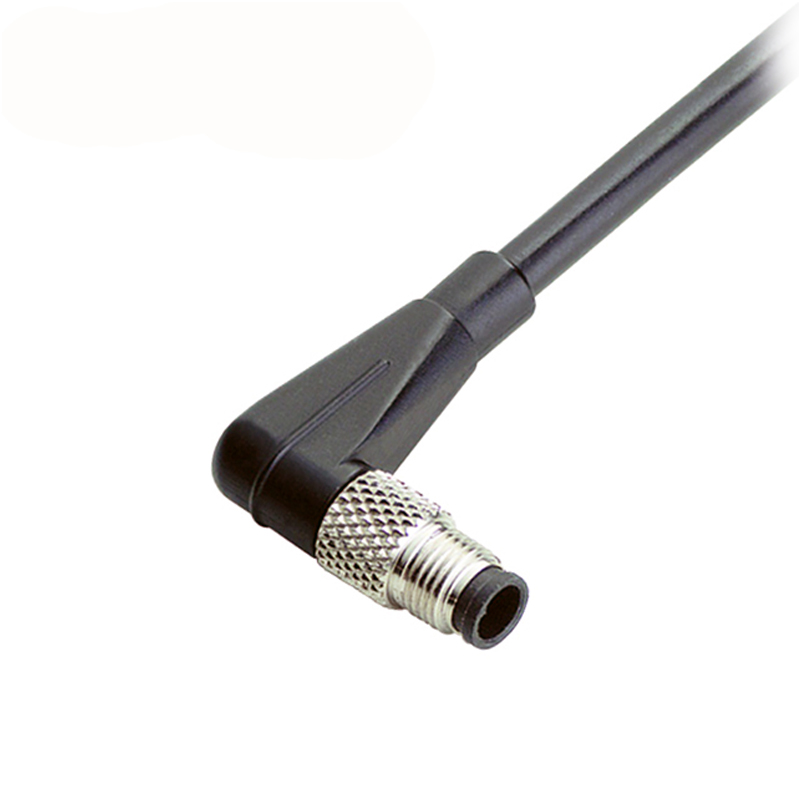

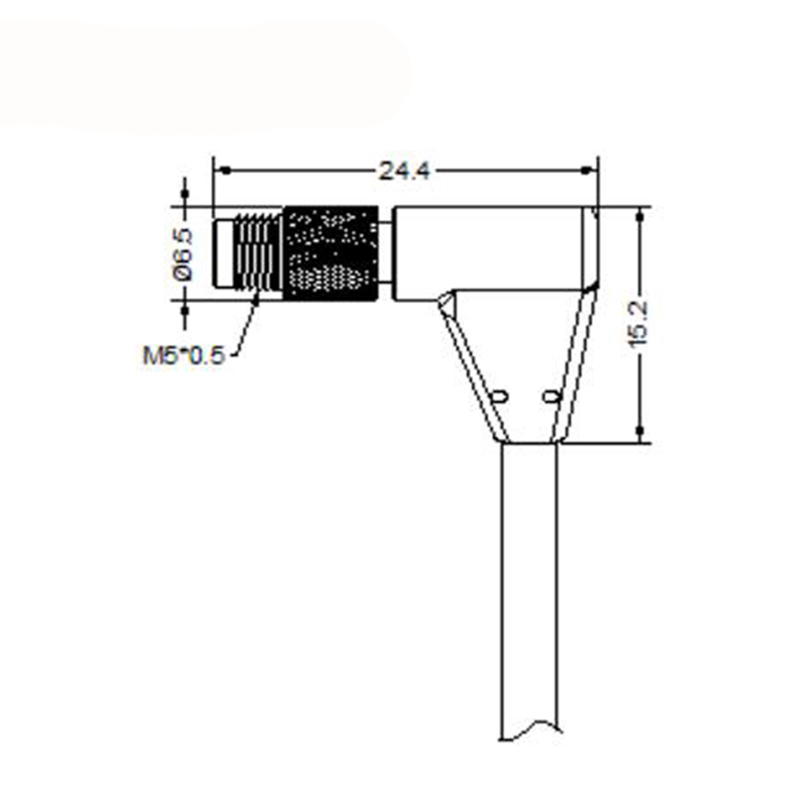

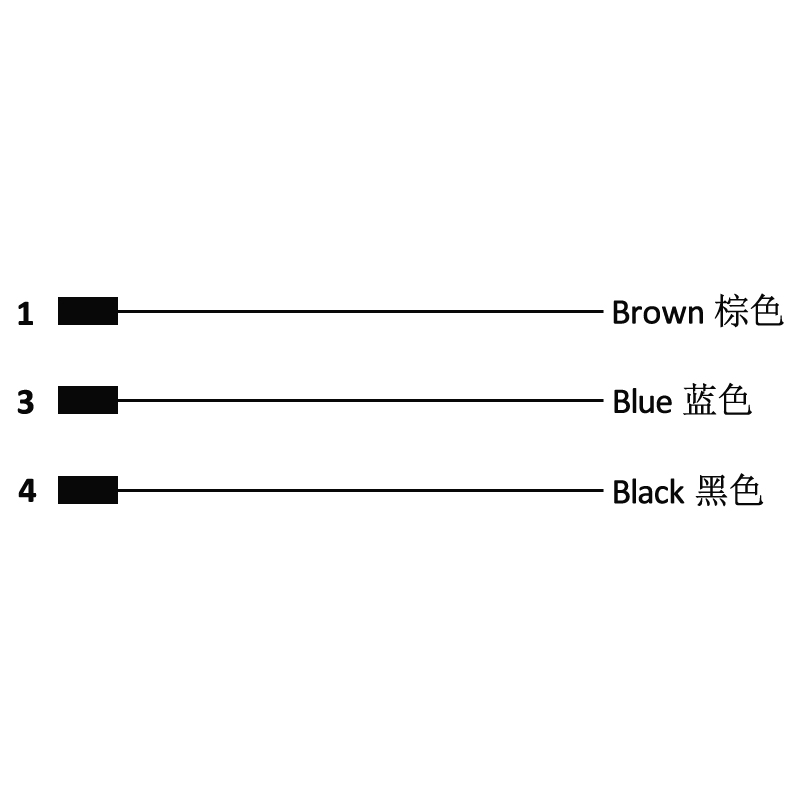

M5 3pins A code male right angle cable,unshielded,PVC,-40°C~+105°C,26AWG 0.14mm²,brass with nickel plated screw

M5 cable assembly has 3pins, 4pins. The highest waterproof grade is IP69K. Any length is available. INDUS-CONNECTOR always provide customized design to cover the whole requirements.
Inquire Online
Download

General information

Part no  5L275
Brand

Indus-c

MOQ

100

Place of origin     Shenzhen city, China
Delivery time

3 weeks


General features

Standards IEC 61076-2-105
Termination Solder and over-mold
Connector locking system Screw
Degree of protection IP67, IP68, IP69K
Wire gauge(mm²) 0.14mm²
Wire gauge(AWG) 26AWG
Mechanical operation >100 mating cycles
Ambient temperature(operation) -40°C~+105°C
Customs tariff number  8518900001
Environmental compliance   RoHS, Reac

Electrical parameters

3Pin 60V
Rated voltage 1A
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ

Material

Connector body TPU
Pin Brass with gold plated
Screw Brass with nickel plated

Download

RoHS & REACH Declaration 5L275

NEED MORE INFORMATIONS?

Contact us

mating connectors
