Part no 16L00395 Brand Indus-c MOQ 100 Place of origin Shenzhen city, China Delivery time 3 weeks
View More
EN / 中文

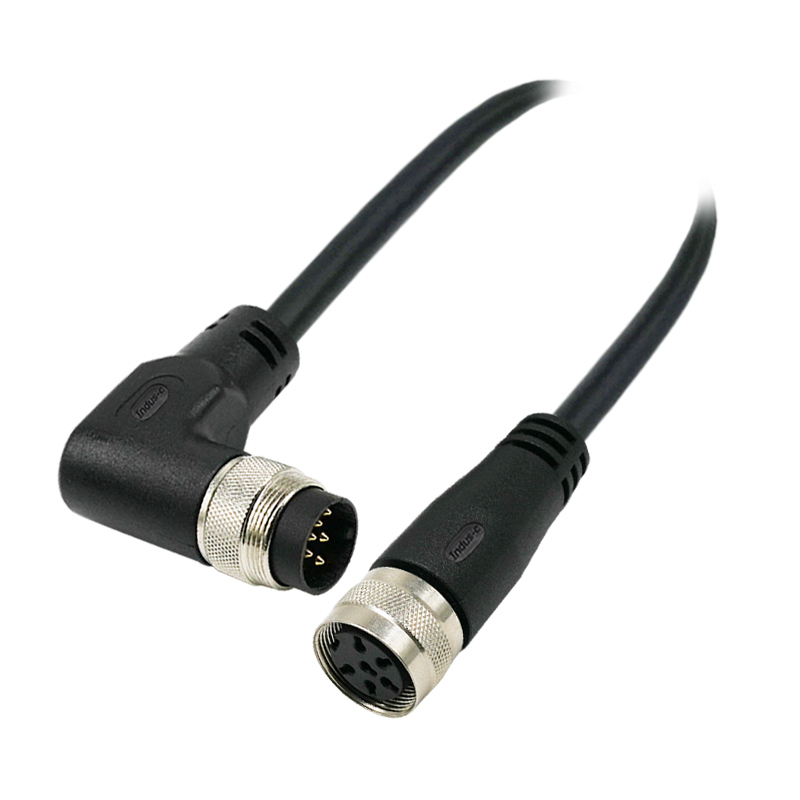

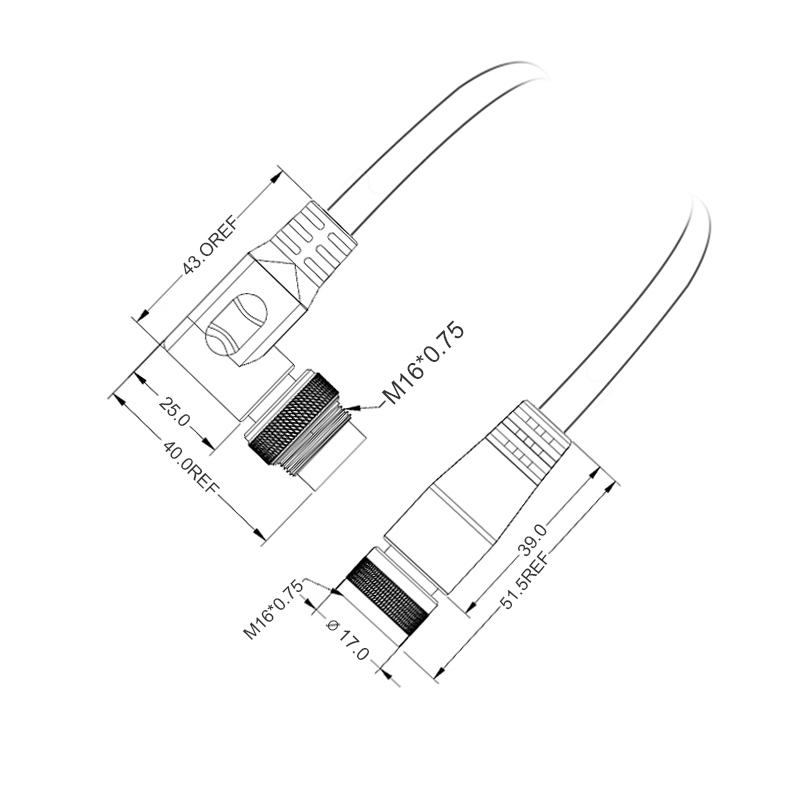

M16 6pins A code male right angle to female straight molded cable,shielded,PVC,-40°C~+105°C,18AWG 0.75mm²,brass with nickel plated screw
Inquire Online
Download
General information
| Part no | 16L00530 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
General features
| Standards | DIN EN 61076-2-106 |
| Termination | Solder and over-mold |
| Connector locking system | Screw |
| Degree of protection | IP67 |
| Wire gauge(mm²) | 0.14mm²-0.75mm² |
| Wire gauge(AWG) | 26AWG-18AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reach |
Electrical parameters
| 6Pin | 150V |
| Rated voltage | 6.0A |
| Contact resistance | 1010 Ω |
| Insulation resistance | ≥100MΩ |
Material
| Connector body | TPU |
| Male pin | Brass with gold plated |
| Female pin | Phosphorus copper with gold plated |
| Screw | Brass with nickel plated |
