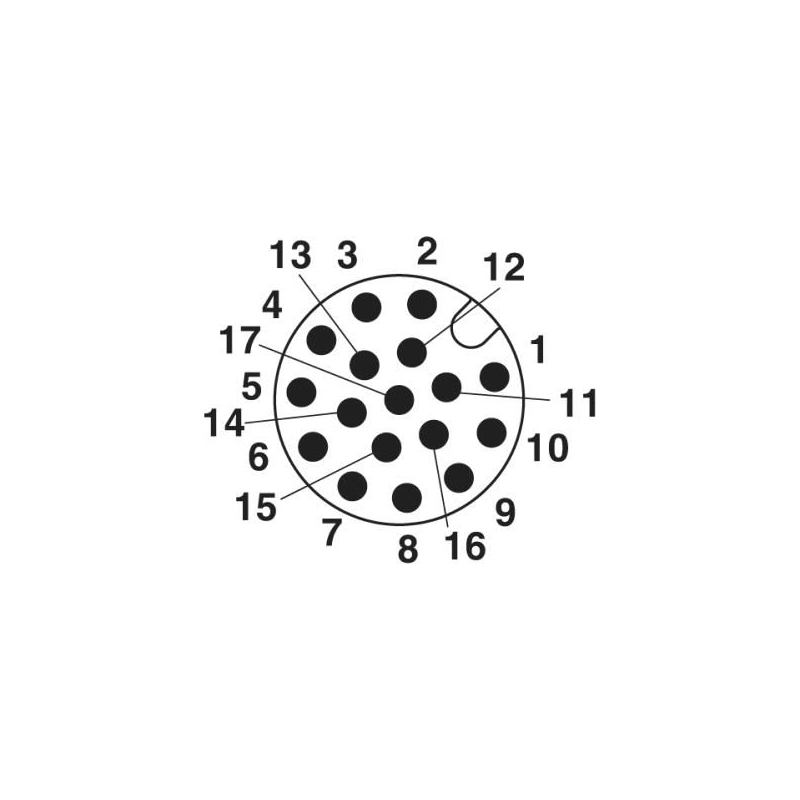

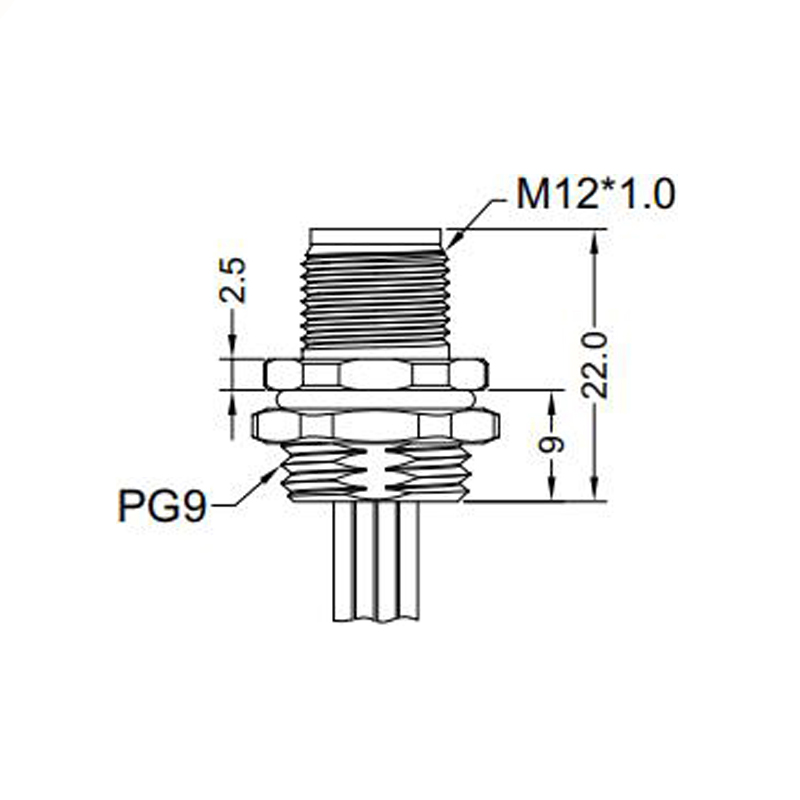

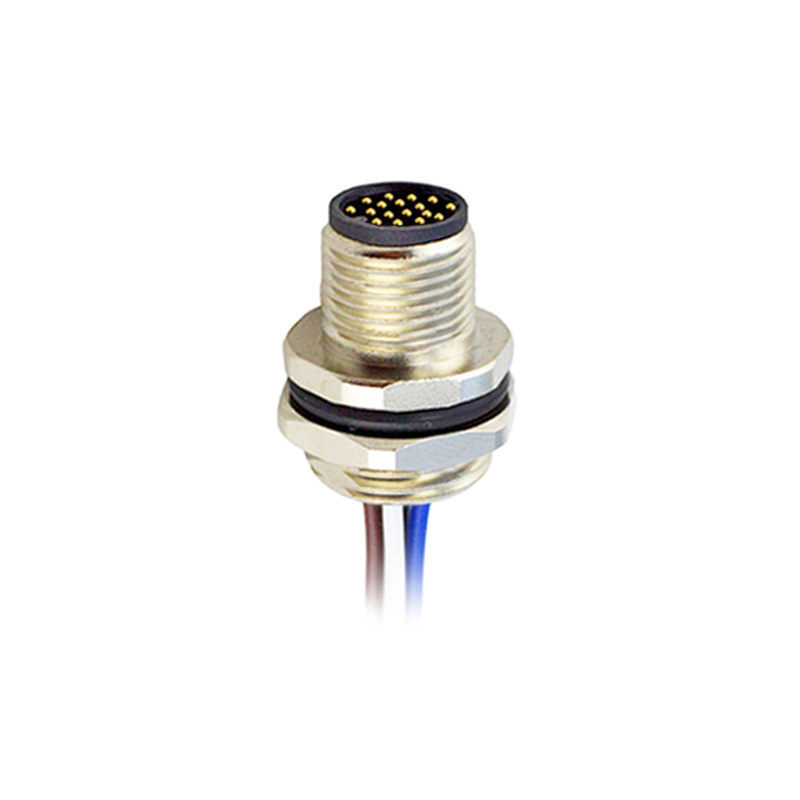

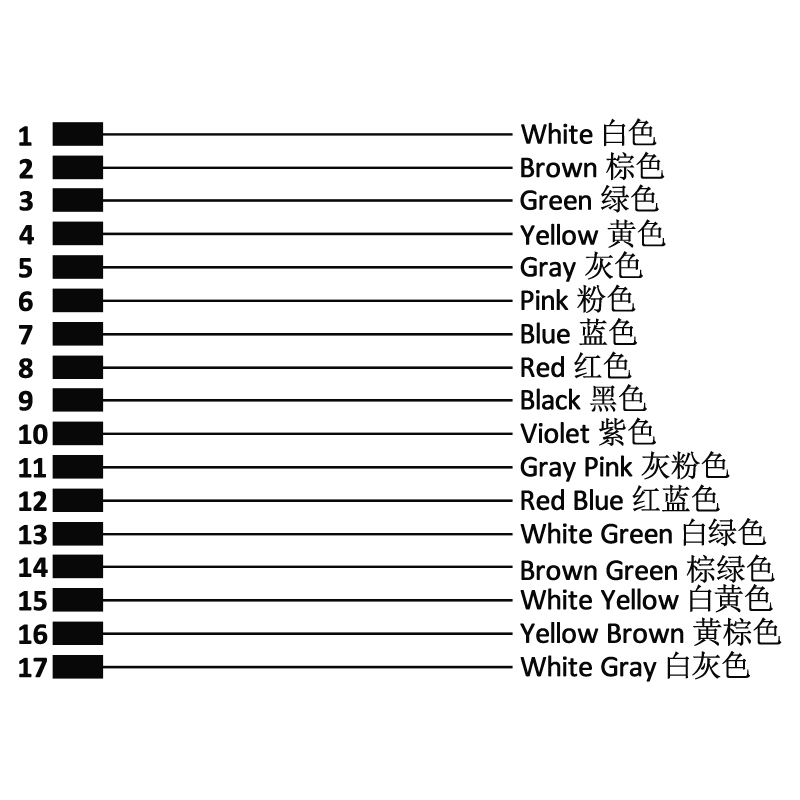

.jpg "M12 17pins A code male straight rear panel mount connector PG9 thread,unshielded,single wires,brass with nickel plated shell")
.jpg "M12 17pins A code male straight rear panel mount connector PG9 thread,unshielded,single wires,brass with nickel plated shell")
.jpg "M12 17pins A code male straight rear panel mount connector PG9 thread,unshielded,single wires,brass with nickel plated shell")
.jpg "M12 17pins A code male straight rear panel mount connector PG9 thread,unshielded,single wires,brass with nickel plated shell")
| Part no |
12D272
|
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
| Standards | IEC 61076-2-101 |
| Termination | Solder |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Wire gauge(mm²) | 0.14mm²-0.75mm² |
| Wire gauge(AWG) | 26AWG-18AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reac |
| 17Pin | 30V |
| Rated voltage | 1.5A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
| Connector body | TPU |
| Pin | Brass with gold plated |
| Screw | Brass with nickel plated |
| RoHS & REACH Declaration | 12D272 |
