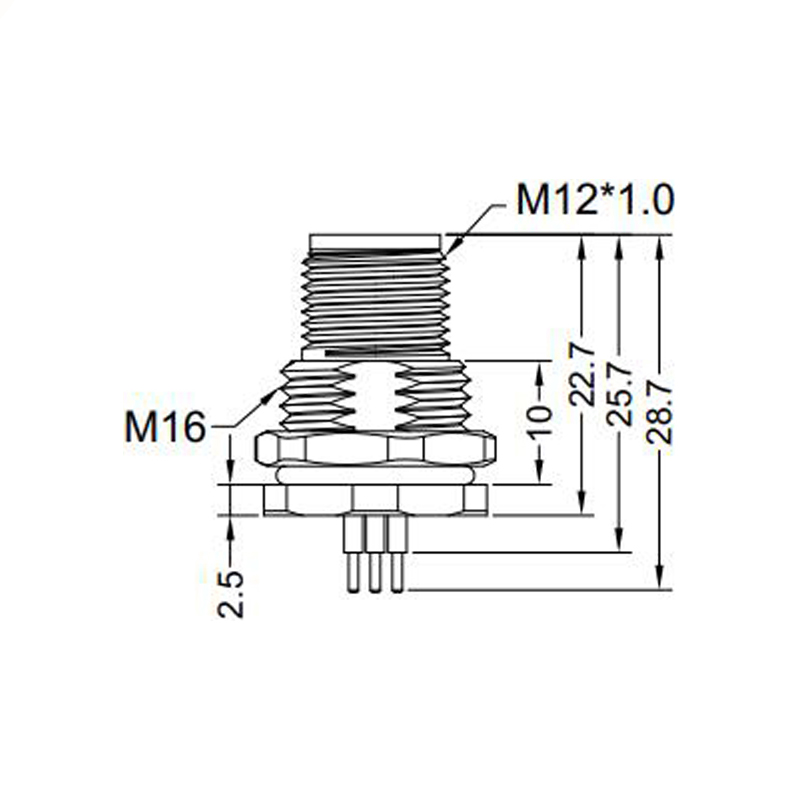

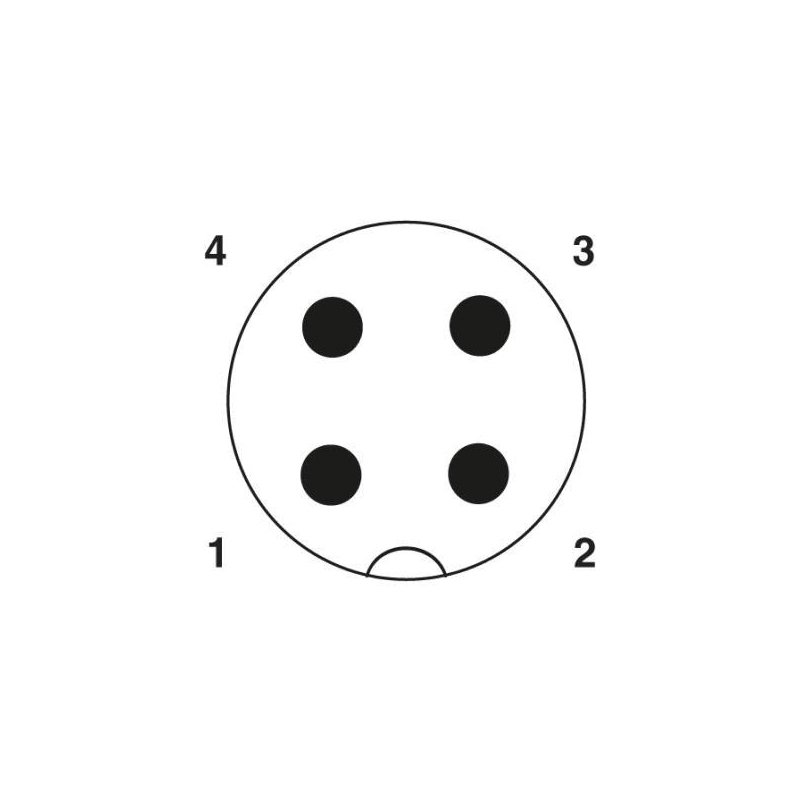

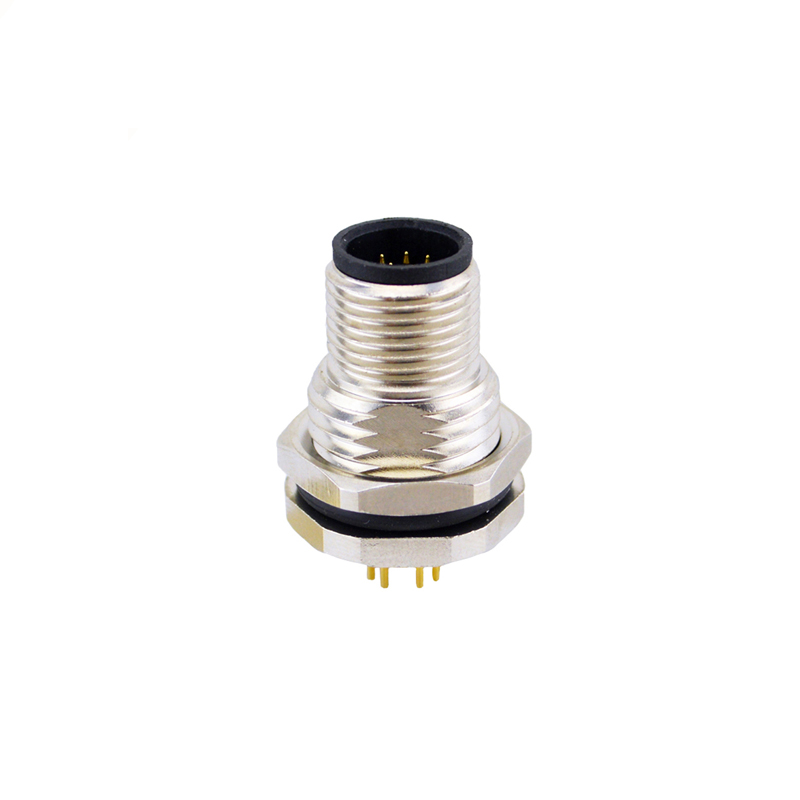

.jpg "M12 4pins A code male straight front panel mount connector M16 thread,unshielded,insert,brass with nickel plated shell")
.jpg "M12 4pins A code male straight front panel mount connector M16 thread,unshielded,insert,brass with nickel plated shell")
.jpg "M12 4pins A code male straight front panel mount connector M16 thread,unshielded,insert,brass with nickel plated shell")
| Part no |
12B025
|
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
| Standards | IEC 61076-2-101 |
| Termination |
Solder PCB
|
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reac |
| 4Pin | 250V |
| Rated voltage | 4A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
| Connector body | TPU |
| Pin | Brass with gold plated |
| Screw | Brass with nickel plated |
| RoHS & REACH Declaration | 12B025 |
INDUS-CONNECTOR M12 PCB connectors are front and rear bulkhead mounted M12 connectors designed for easy handling on the PCB and compatibility with wave soldering processes. M12 PCB connectors include an incorporated wire clip with an integra
